Yamaha DBR12 Performing Portable PA System

This Yamaha DBR12 package is perfect for school functions, stage performances, outdoor events, DJs, or those up-and-coming rock bands with a budget! Extremely powerful, yet fairly portable, the Yamaha DBR12 loudspeakers offer features that are un-matched at this price. Each DBR loudspeaker is housed in a newly designed, durable, lightweight cabinet optimized for FOH sound, floor-monitoring and even rigged applications.

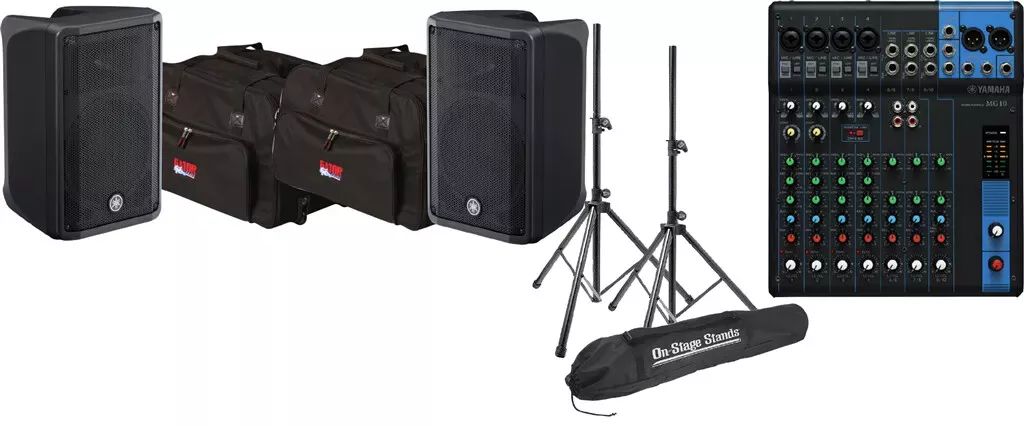

Yamaha DBR12 Performing Portable PA System includes:

• 2 Yamaha DBR12 Loudspeakers
• Yamaha MG10 mixer
• 2 Gator GPA-712LG speaker bags
• On-Stage SSP7900 speaker stand package with bag (2 stands)
• 2 Rapco AJP-50 speaker cables, 50 feet

Yamaha DBR12 Powered Speaker features:

• High-efficiency 1000 watt Class-D amplifier
• Custom Designed Transducer
• Rugged, highly portable cabinet
• Smart enclosure design for floor monitoring
• Easy-to-use onboard 2-channel mixer
• Rigging points for installation applications

Specifications

• Speaker type: 2-way, Bi-amp powered speaker, Bass-reflex type
• Frequency range (-10dB): 52Hz – 20kHz
• Nominal coverage (H x V): 90° x 60°
• LF components: Diameter – 12″ cone, Voice Coil – 2″, Magnet – Ferrite
• HF components: Diaphragm – 1.4″, Type – 1″ throat compression driver, Magnet – Ferrite
• Crossover: 2.1kHz – FIR-X tuning (linear phase FIR filter)
• Output power: Dynamic: 1000 W (LF: 800 W, HF: 200 W) / Continuous: 465 W (LF: 400 W, HF: 65 W)
• Maximum output level (1m; on axis): 131dB SPL
• I/O connectors: INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
• Processors: D-CONTOUR: FOH/MAIN, MONITOR, OFF
• Heat dissipation: Fan cooling, 4 speeds
• Cabinet material: Plastic
• Handle: Side x2
• Dimensions (W x H x D): 376mm x 601mm x 348mm (14.8″ x 23.7″ x 13.7″)
• Weight: 15.8 kg (34.8 lbs)
