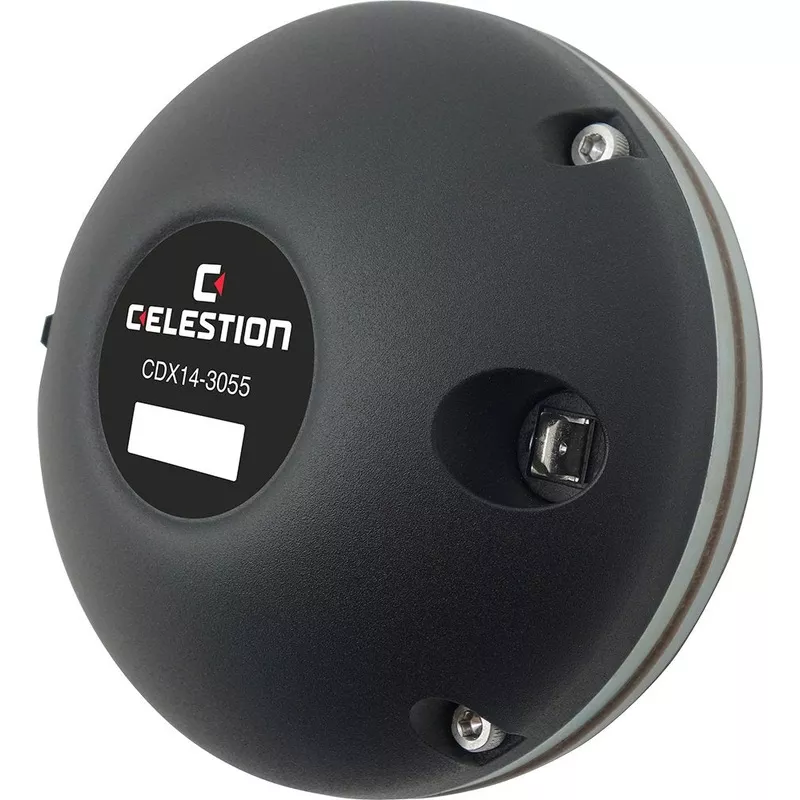

The Celestion CDX14-3055 is a high-frequency compression driver designed to deliver superior audio performance in professional sound reinforcement applications. Featuring a 1.4-inch exit and a neodymium magnet, this driver provides excellent power handling and high sensitivity, making it an ideal choice for high-quality fixed installations and touring sound systems. The compact design and enhanced surround shape contribute to greater linearity and reduced distortion.
Features:
1.4-inch exit with neodymium magnet
Single-piece titanium diaphragm and surround
High-temperature polymer clamp ring minimizes distortion
Compact design for improved close-coupling in line arrays
High sensitivity for greater efficiency
Specifications:
Power Rating:120W (continuous), 240W (peak)
Sensitivity:108dB
Frequency Range:500-20,000 Hz
Recommended Minimum Crossover (12dB/oct):800 Hz
Magnet Type:Neodymium
Voice Coil Diameter:3 inches (75 mm)
Voice Coil Material:Copper-clad aluminum wire
Diaphragm Material:Titanium
Surround Material:Titanium
Throat Exit:1.4 inches (35 mm)
Mounting Information:
Width:4.7 inches (120 mm)
Depth:2.2 inches (55 mm)
Fitting:Bolt (4 x M6 holes on 101.6 mm PCD)
Unit Weight:3.75 lbs (1.7 kg)
Packed Dimensions:6.7 x 5.5 x 3 inches (170 x 140 x 75 mm)
