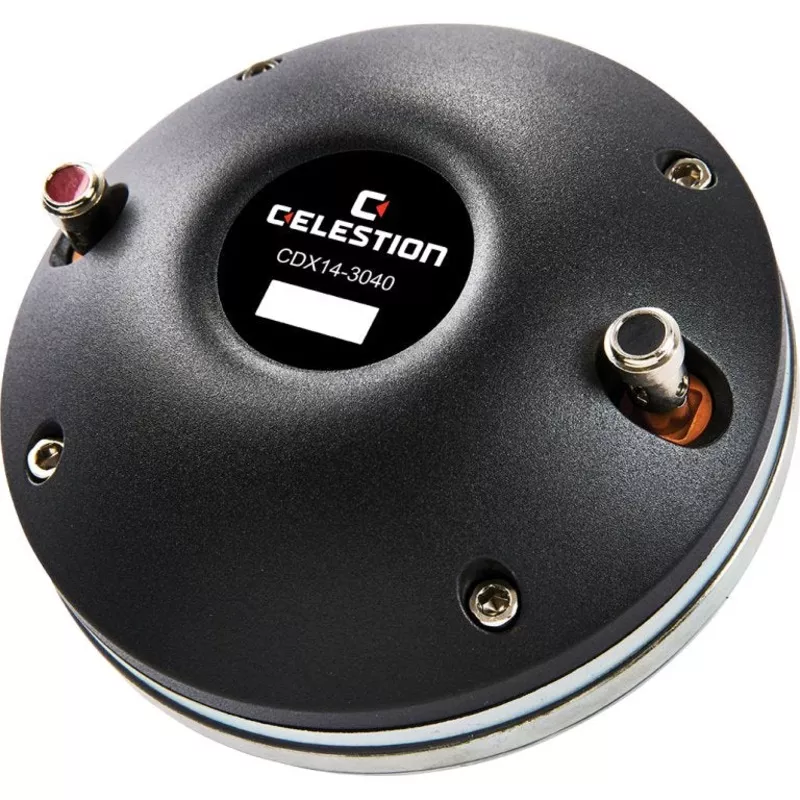

Celestion CDX14-3040 1.4 75 Watt 8 Ohm Neodymium Compression Driver

Overview

The Celestion CDX14-3040 is a premium 1.4-inch exit neodymium compression driver, engineered to provide exceptional high-frequency response with minimal distortion. It features a pure titanium 3-inch diaphragm driven by a powerful neodymium magnet, ensuring lightweight construction without compromising performance. Ideal for professional sound reinforcement applications, the CDX14-3040 delivers reliable and accurate audio output.

Features:

• 1.4-inch exit neodymium magnet compression driver
• Single-piece titanium diaphragm and surround for durability and clear sound
• Optimized using Finite Element Analysis (FEA) for low distortion
• High sensitivity and wide frequency response
• Spring-loaded push-button connectors for easy and secure wiring

Specifications:

• Power Rating: 75W (continuous)
• Sensitivity: 106.5dB
• Frequency Range: 500-18,000 Hz
• Recommended Minimum Crossover (12dB/oct): 1,000 Hz
• Magnet Type: Neodymium
• Voice Coil Diameter: 3 inches (75 mm)
• Voice Coil Material: Copper-clad aluminum wire
• Diaphragm Material: Titanium
• Nominal Impedance: 8 Ohms
• Mounting Information:
  • Outside Diameter: 5.3 inches (135 mm)
  • Depth: 2.7 inches (68 mm)
  • Driver Mounting System: 4 x M6 holes on 4-inch PCD
  • Unit Weight: 3.1 lbs (1.4 kg)

• Mounting Information:

  • Cut-out Diameter: 5.3 inches (135 mm)
  • Overall Diameter: 5.3 inches (135 mm)
  • Magnet Structure Diameter: 2.7 inches (68 mm)
  • Mounting Hole Dimensions: 0.31 inches (7.9 mm)
  • Mounting Hole PCD: 4 inches (101.6 mm)
  • Number of Mounting Holes: 4
  • Overall Depth: 2.7 inches (68 mm)
  • Unit Weight: 3.1 lbs (1.4 kg)
