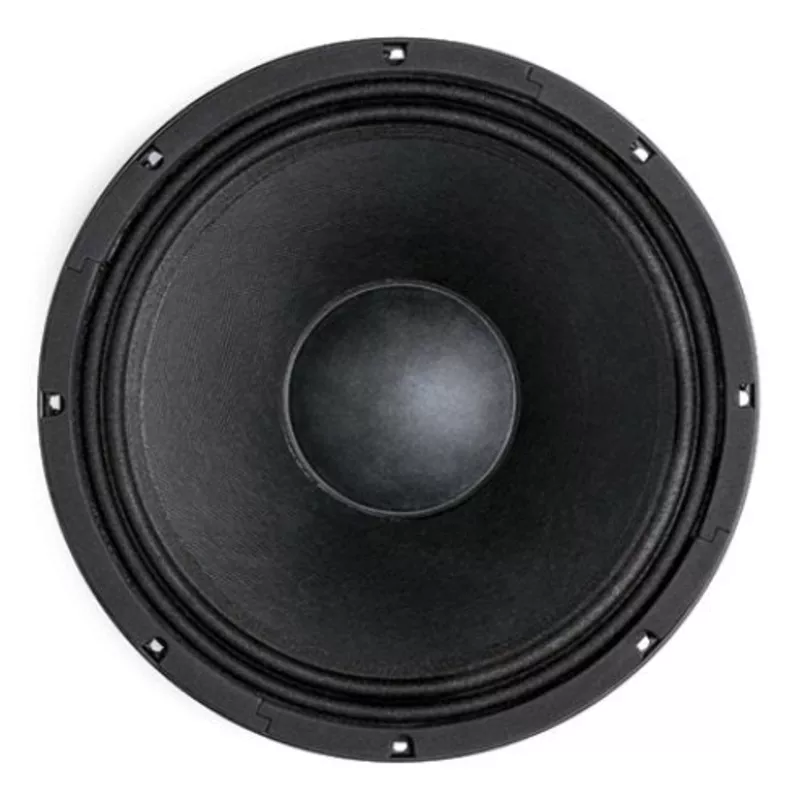

The B&C 12HPL76-8 is a high-efficiency 12-inch woofer designed to deliver powerful and precise low-frequency performance. Utilizing a high-energy neodymium magnet assembly and a 3-inch aluminum voice coil, this woofer combines lightweight construction with robust power handling capabilities. Ideal for use in compact two-way loudspeaker systems or as a midrange driver in larger PA systems, the 12HPL76-8 is perfect for demanding professional audio applications.
Features:
High energy neodymium magnet assembly
3-inch inside-outside aluminum voice coil
Cast aluminum basket for effective heat dissipation
High efficiency and power handling
Suitable for compact two-way systems and larger PA systems
Detailed Specifications:
Nominal Diameter: 12 inches (320 mm)
Impedance: 8 ohms
Minimum Impedance: 6.7 ohms
RMS Power Handling: 350 watts
Continuous Power Handling: 700 watts
Sensitivity: 99 dB (1W/1m)
Frequency Response: 50 – 3500 Hz
Voice Coil Diameter: 76 mm (3 inches)
Voice Coil Material: Aluminum
Former Material: Glass Fiber
Winding Depth: 18 mm (0.68 inches)
Magnetic Gap Depth: 10 mm (0.4 inches)
Flux Density: 1.15 T
Resonance Frequency (Fs): 49 Hz
Qes: 0.26
Qms: 2.5
Qts: 0.25
Vas: 91 dm (3.2 ft)
Xmax: 4 mm
Mms: 43 g
Bl: 17.3 Tm
Le: 1.5 mH
Mounting Information:
Overall Diameter: 315 mm (12.4 inches)
Bolt Circle Diameter: 296 mm (11.6 inches)
Baffle Cutout Diameter: 282 mm (11.1 inches)
Depth: 144 mm (5.7 inches)
Net Weight: 3.15 kg (6.94 lbs)
Shipping Weight: 4.05 kg (8.93 lbs)
Shipping Box Dimensions: 360x360x200 mm (14.17×14.17×7.87 inches)
